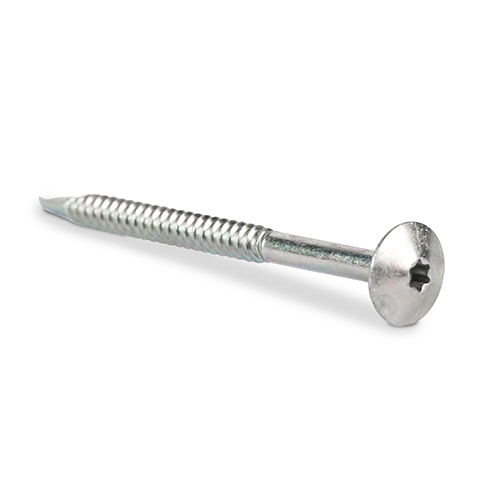

Self-tapping Fixing Screw - steel Zn plated
| Plastic frame: The screw needs a 1.5 mm steel core in the frame profile.
| Material: steel, zinc-plated
| The number of fixings can be taken from the test report.
SKU:
M-16900560000
| Screw Length, B , C(min) | L=45mm, B=0-14mm , C(min)=35mm or L=55mm, B=15-24mm , C(min)=45mm or L=65mm, B=25-34mm , C(min)=55mm or L=75mm, B=35-44mm , C(min)=65mm or L=85mm, B=45-54mm , C(min)=75mm or L=95mm, B=55-64mm , C(min)=85mm or L=105mm, B=65-74mm , C(min)=95mm |
| Sales unit | 12 or 100 |
